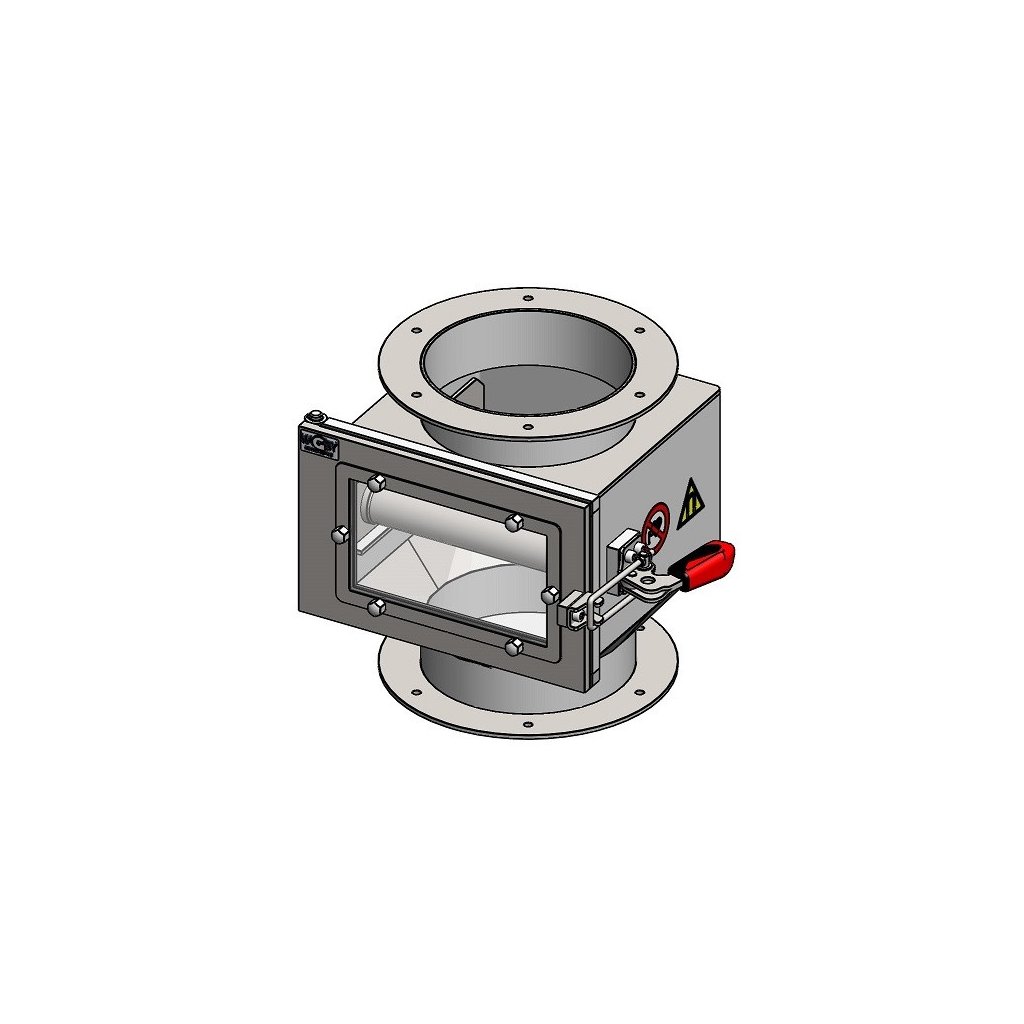

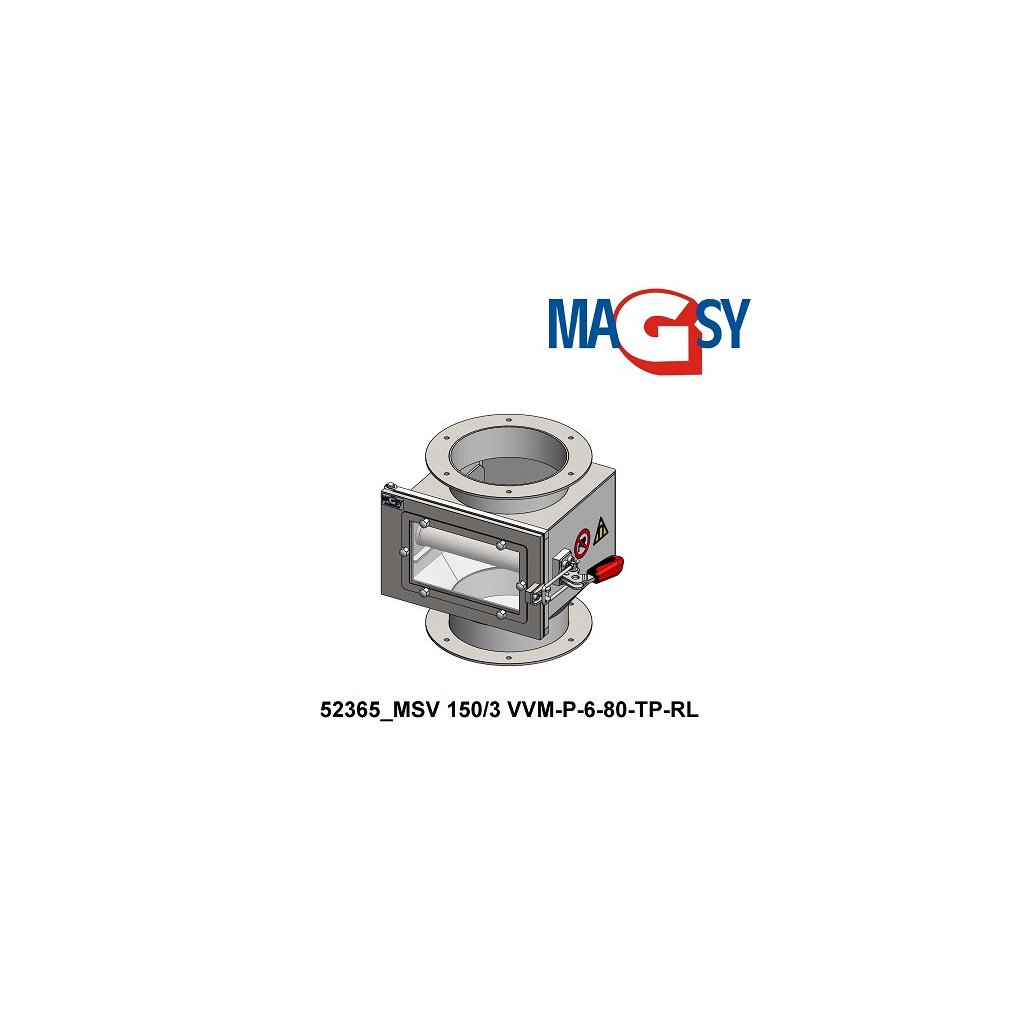

Telescopic magnetic separator MSV 150/3 VVM-P-6-80-TP-RL

This separator not suit you?
We will make a custom separator for you
Contact us

Customer support

+420 577 220 497
e-shop@magsy.co.uk

Make an inquiry

Data sheet

Material Stainless steel DIN 1.4301, EN 10088, ČSN 17240, AISI 304, AKV 7 - non-stabilized austenitic nickel-chromium steel (X5CrNi 18-10)
Number of magnetic bars 3
Magnetic bar diameter 31 mm
Tube magnetic force 12,200 Gs
Tube tearing force 106
Total weight 10,8 kg
Magnetic core weight 4 kg
Magnet temperature resistance 80 °C
Input/Output DN 150
Body surface finish Glass bead blasting
Surface finish of grates and tubes Glass bead blasting
Product state New
Design Standard
Magnet type Neodymium (NdFeB)
Termination Flange

Attachments

Download

In Stock
We'll send tomorrow
52365
8595133967228
€2,035.20 Tax excluded
