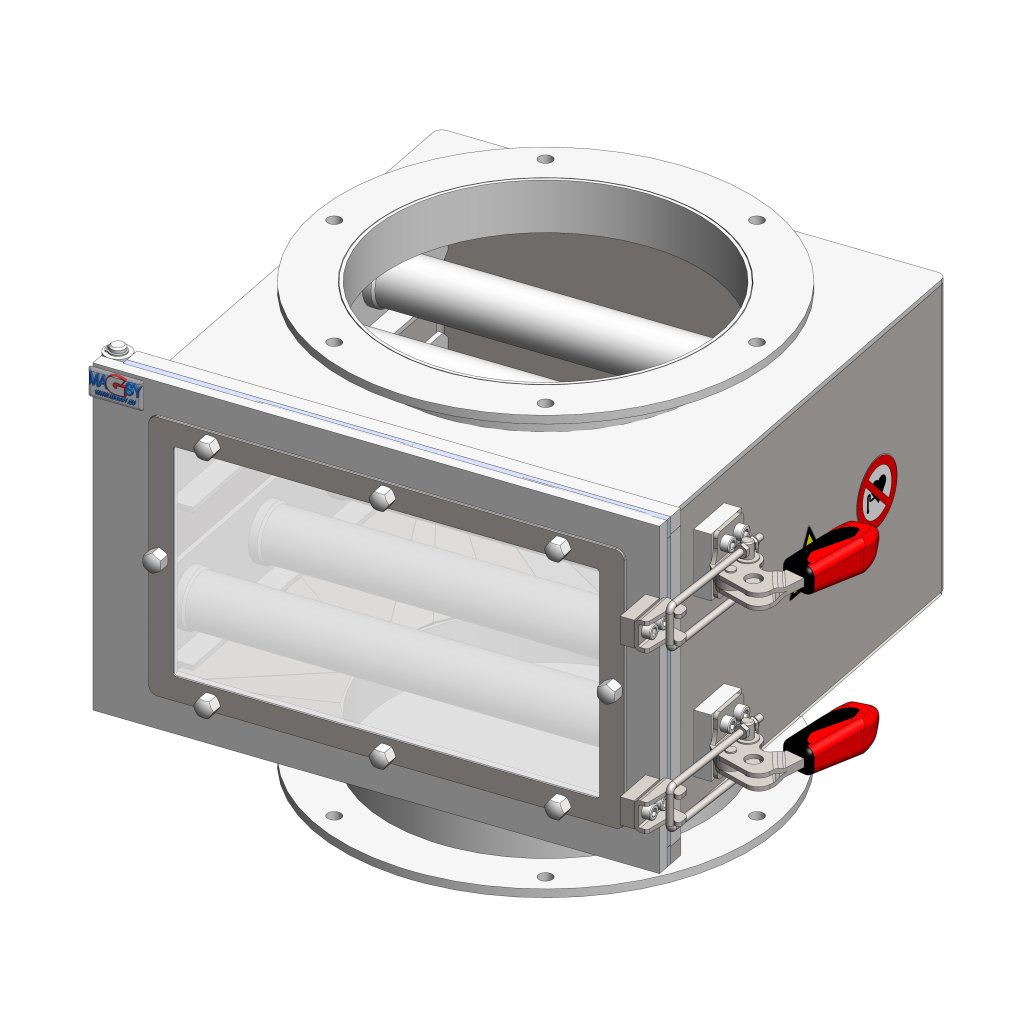

Telescopic magnetic separator MSV 200/7 VVM-P-3-80-TP-RL

This separator not suit you?
We will make a custom separator for you
Contact us

Customer support

+420 577 220 497
e-shop@magsy.co.uk

Make an inquiry

More detailed text can be found HERE

Data sheet

Material stainless steel DIN 1.4301 /AISI 304 / ČSN 1724 0
Number of magnetic bars 7
Tube magnetic force 8,800 Gs
Tube tearing force 117 N
Total weight 25 kg
Magnetic core weight 13 kg
Magnet temperature resistance 80 °C
Input/Output DN 200
Body surface finish Glass bead blasting
Surface finish of grates and tubes Polishing, Ra value less than: 0.1 µm
Sealing Silicone - also for the food industry (ATTEST)
Product state New
Design Standard
Magnet type Neodymium (NdFeB)
Termination Flange
Have a question?
Ask our experts
Not in stock
Ask for availability
52128
8595134000092
€2,400.00 Tax excluded

Doprava nad 1000 Kč ZDARMA

  • Online only

16 other products in the same category:
