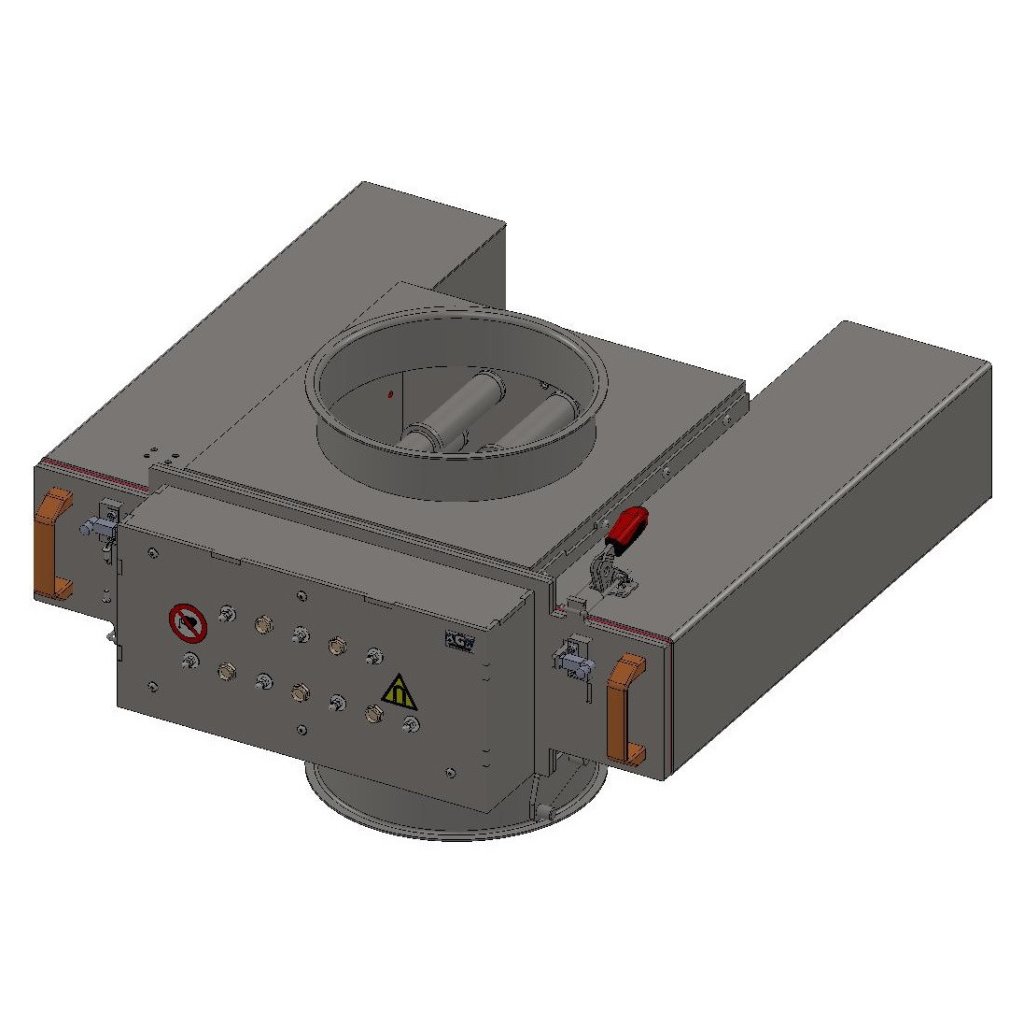

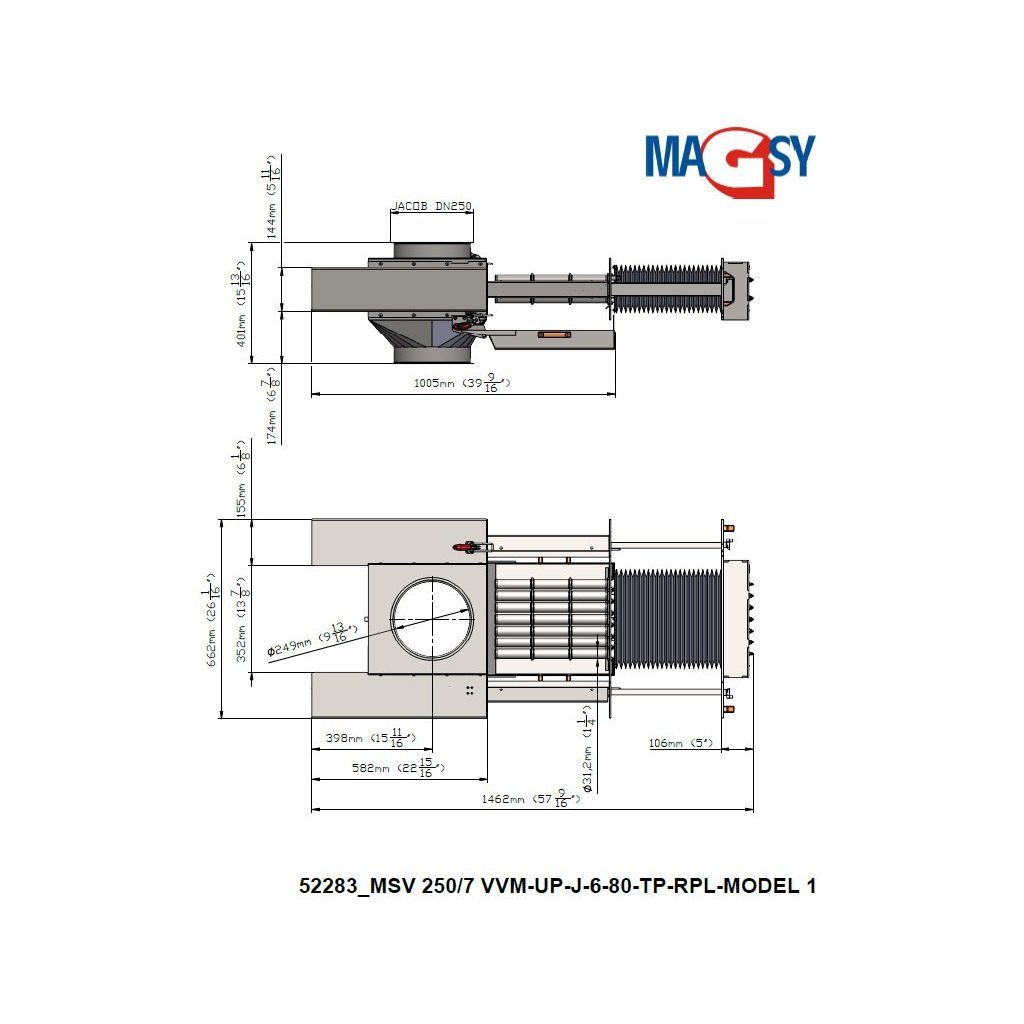

Telescopic magnetic separator MSV 250/7 VVM-UP-J-6-80-TP-RPL-MODEL 1

This separator not suit you?
We will make a custom separator for you
Contact us

Customer support

+420 577 220 497
[email protected]

Make an inquiry
More detailed text can be found HERE

Data sheet

Material Stainless steel DIN 1.4301, EN 10088, (X5CrNi 18-10), ČSN 17240, AISI 304, AKV 7 Pipe material - Stainless steel DIN 1.4404, EN 10088-1, (X2CrNiMo 17-12-2), ČSN 17 349, AISI 316L, AKV Extra 2
Number of magnetic bars 7
Magnetic bar diameter 31 mm
Tube magnetic force 12,200 Gs
Tube tearing force 106 N
Total weight 76,6
Magnet temperature resistance 80 °C
Input/Output DN 250
Body surface finish Glass bead blasting
Surface finish of grates and tubes Polishing, Ra value less than: 0.1 µm
Product state New
Design UP
Magnet type Neodymium (NdFeB)
Termination Jacob
In Stock
We'll send on Wednesday
Last items in stock
52283
8595133999625
€8,750.00 Tax excluded
In Stock
We'll send on Wednesday
Last items in stock

Doprava nad 1000 Kč ZDARMA

Additional description

The reported tear force values for some products were measured under ideal conditions given by the test environment. However, these values may vary depending on the specific type of environment where, for example, operating conditions and subsequent wear may affect the effectiveness of the product. However, measurements have not been made for all products and in such cases are only an estimate or internal auxiliary calculation by the vendor. The values quoted are therefore to be considered as indicative and the Seller declares that they are not a description of the goods in terms of the agreed characteristics in the sales contract on the basis of Article 6(a) of Directive (EU) 2019/771 of the European Parliament and of the Council of 20 May 2019 on certain aspects of contracts for the sale of goods, amending Regulation (EU) 2017/2394 and Directive 2009/22/EC and repealing Directive 1999/44/EC. In order to determine the exact value of the tear force in a specific case, it is necessary to carry out the actual measurement. In case the detected values of the breakaway force are not sufficient for you, as they do not correspond to the stated values, you can take advantage of the guaranteed return option within 30 days under the conditions stated here: https://magsy.shop/goods-returning/ and purchase a stronger magnet. These 30 days are just for testing the goods, after which the seller can refuse the return.
