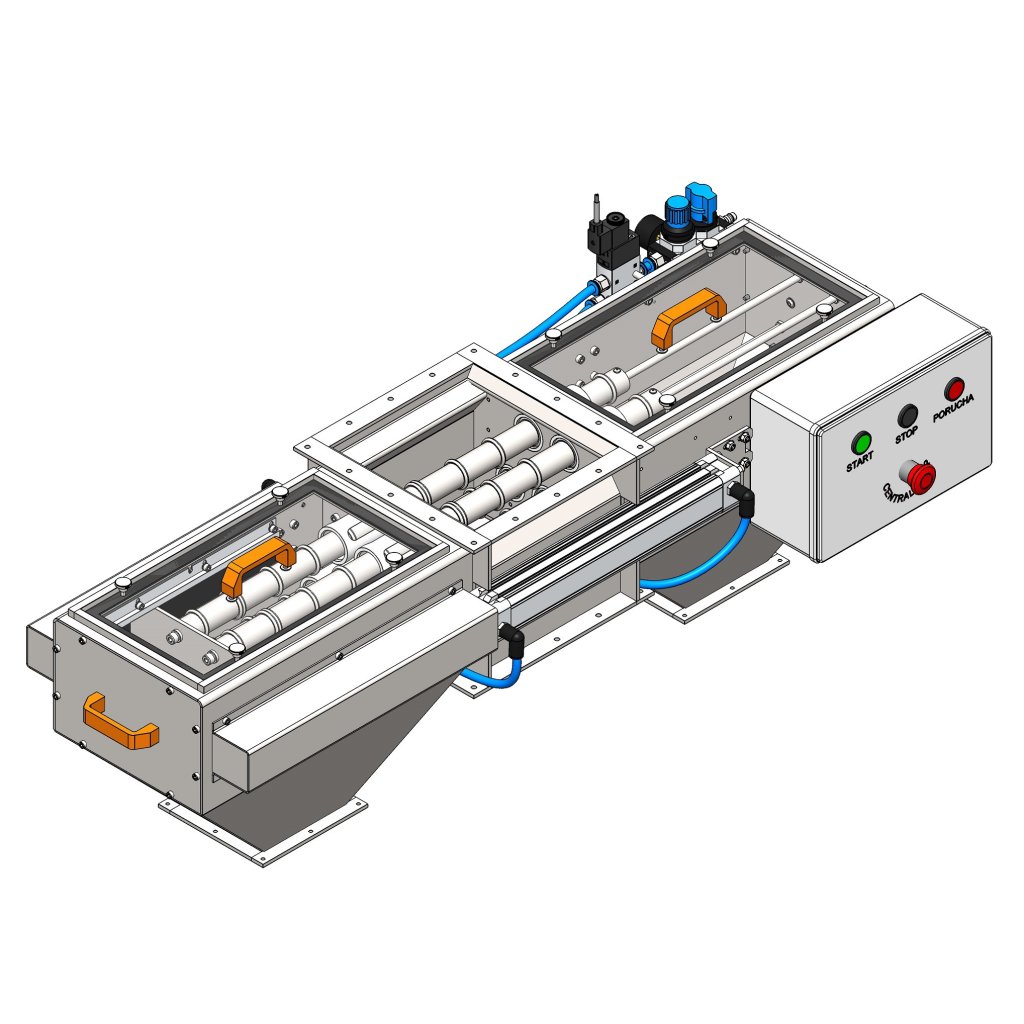

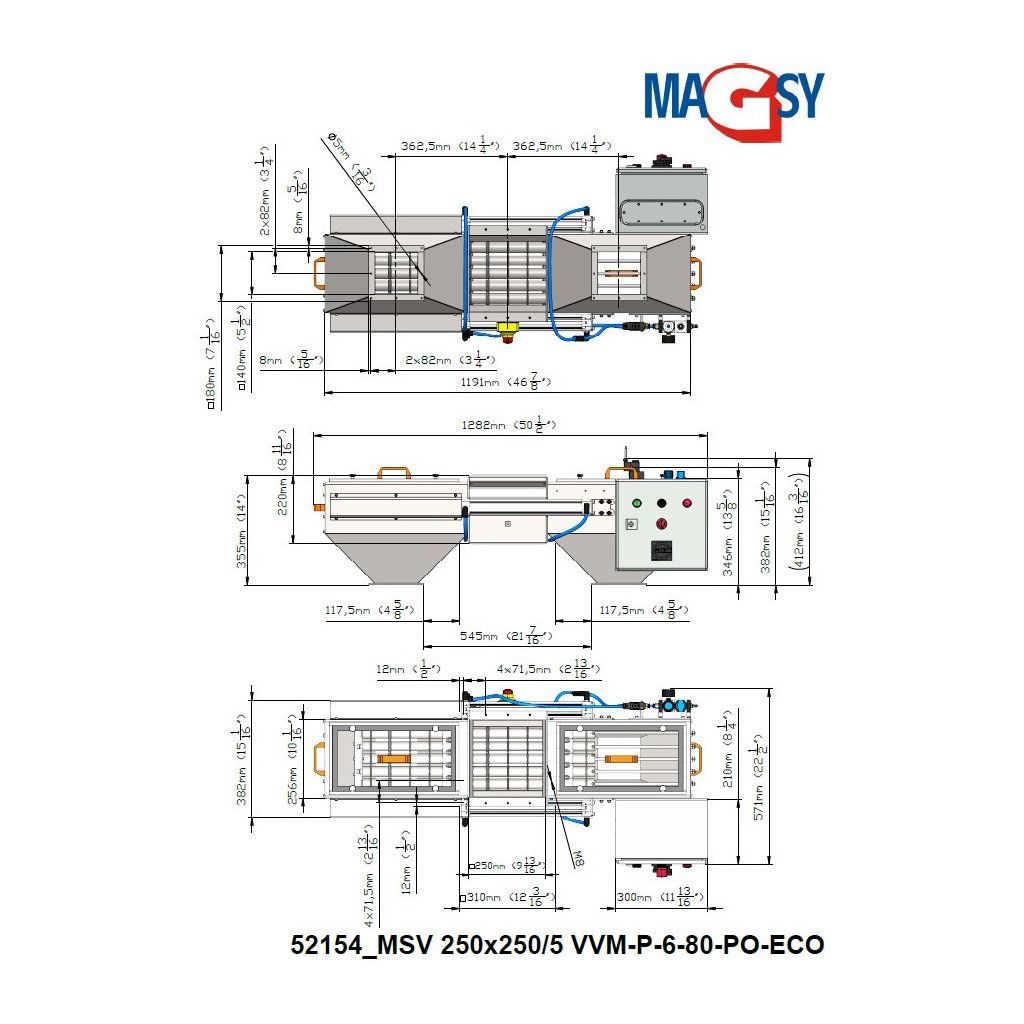

Telescopic magnetic separator MSV 250x250/5 VVM-P-6-80-PO-ECO
This separator not suit you? We will make a custom separator for you |
Contact us ![]() Customer support |
Make an inquiry |
Data sheet
Material | Stainless steel DIN 1.4301, EN 10088, (X5CrNi 18-10), ČSN 17240, AISI 304, AKV 7 |
Number of magnetic bars | 5 |
Magnetic bar diameter | 31 mm |
Tube magnetic force | 12,200 Gs |
Tube tearing force | 106 N |
Total weight | 62 kg |
Magnet temperature resistance | 80 °C |
Input/Output | 250x250 mm |
Body surface finish | Glass bead blasting |
Product state | New |
Design | Automat - ECO |
Magnetic force at distance of 1 mm | 7,000 Gs |
Magnetic force at distance of 5 mm | 3,300 Gs |
Magnet type | Neodymium (NdFeB) |
Termination | Flange |
Performing cleaning | Double-sided |
Material flow interruption | Ano |
